Displays for Virtual Shooting XR Series

P1.95/P2.315/P2.604（500X500）

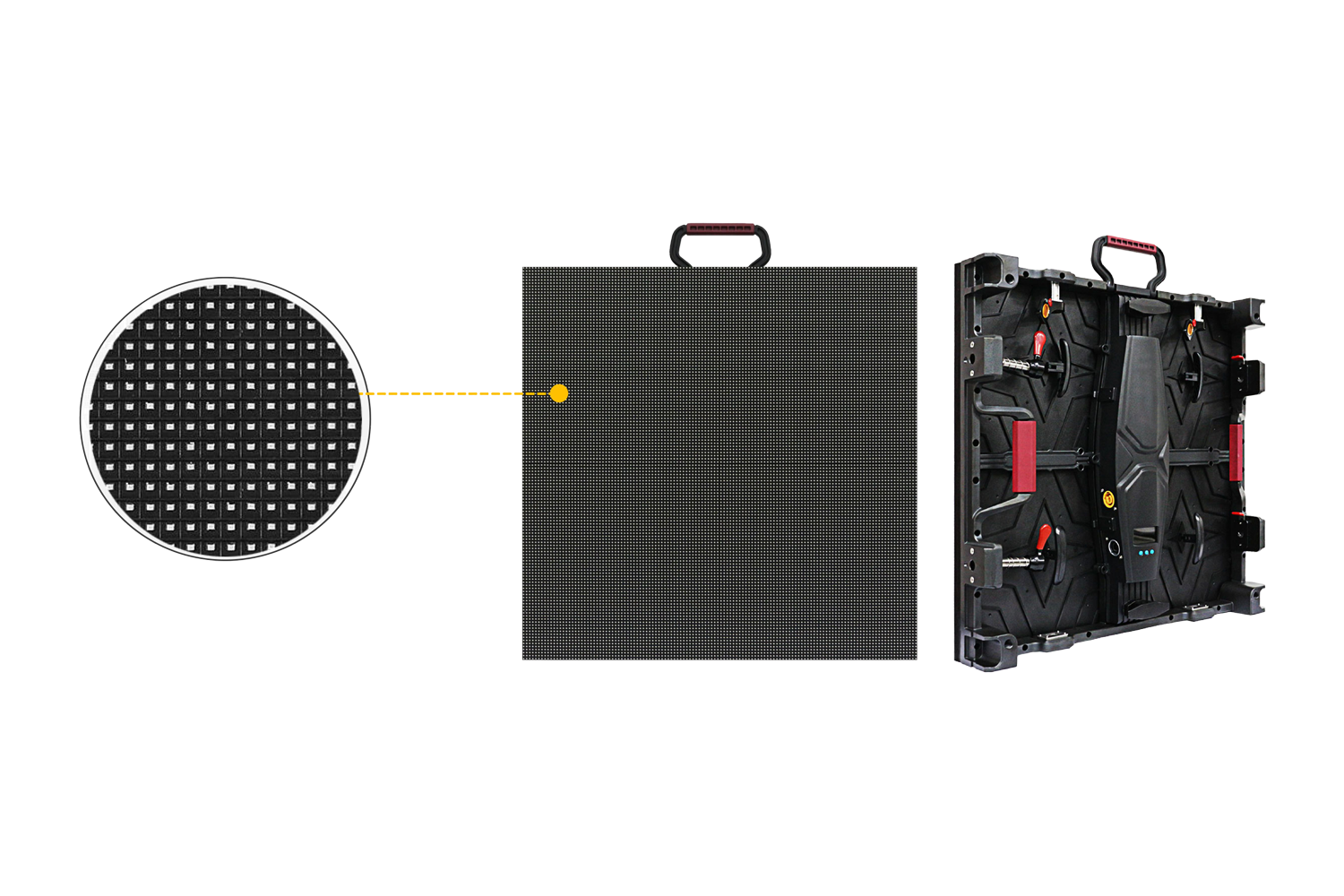

Front

High-contrast corrugated light-absorbing mask Ultra-high contrast

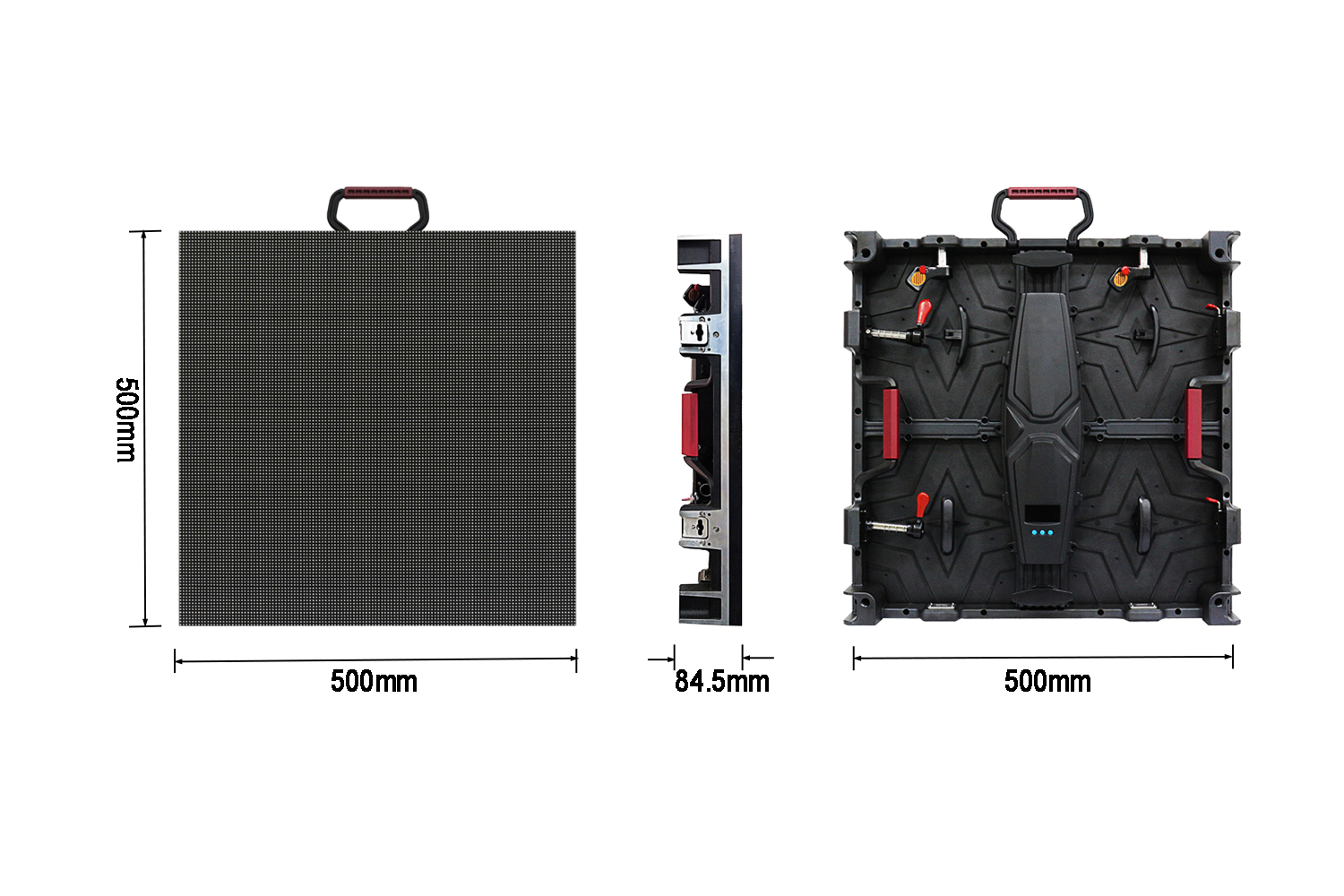

Dimensions of cabinet

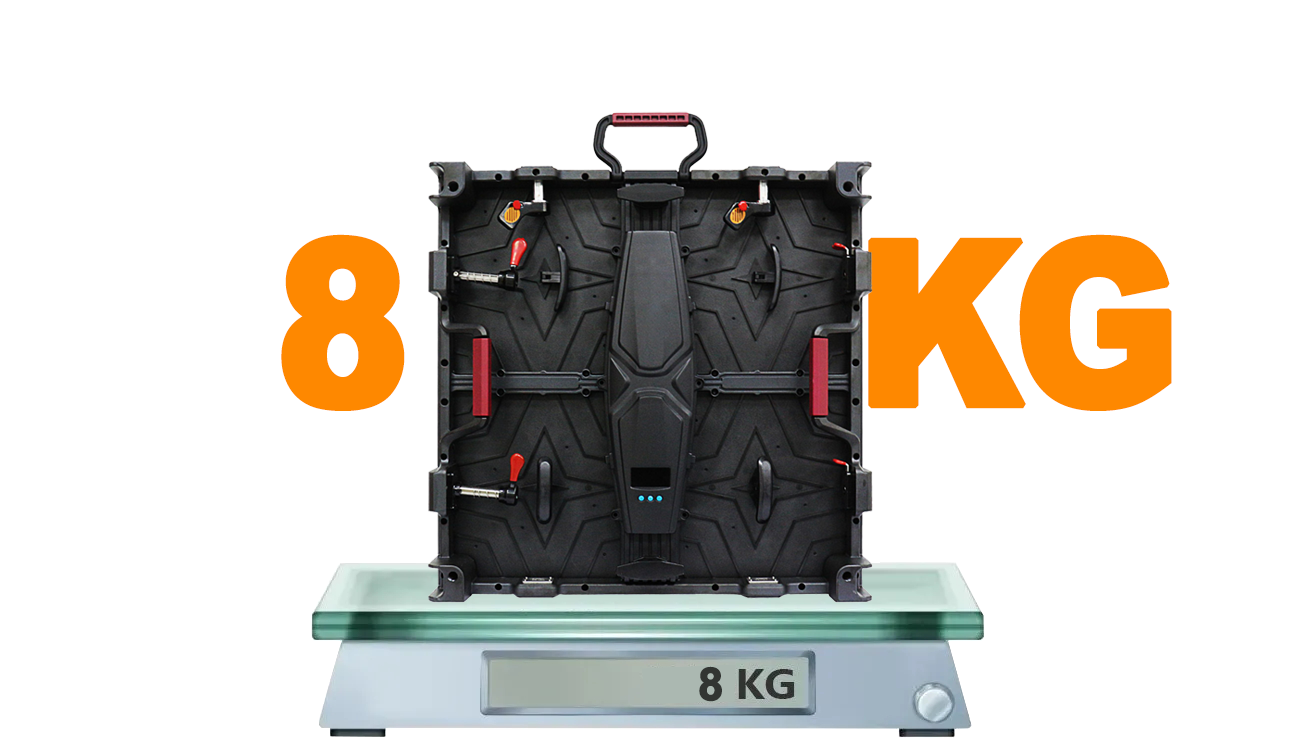

Lighter, thinner and smarter cabinet

Ultra-thin and lightweight Reduces transportation costs and installation labor costs Reduced load on steel frame structure for increased durability

Color reproduction

Strong color reproduction ability, intelligent reproduction of 68.7 billion colors,

to ensure the real sense of the image

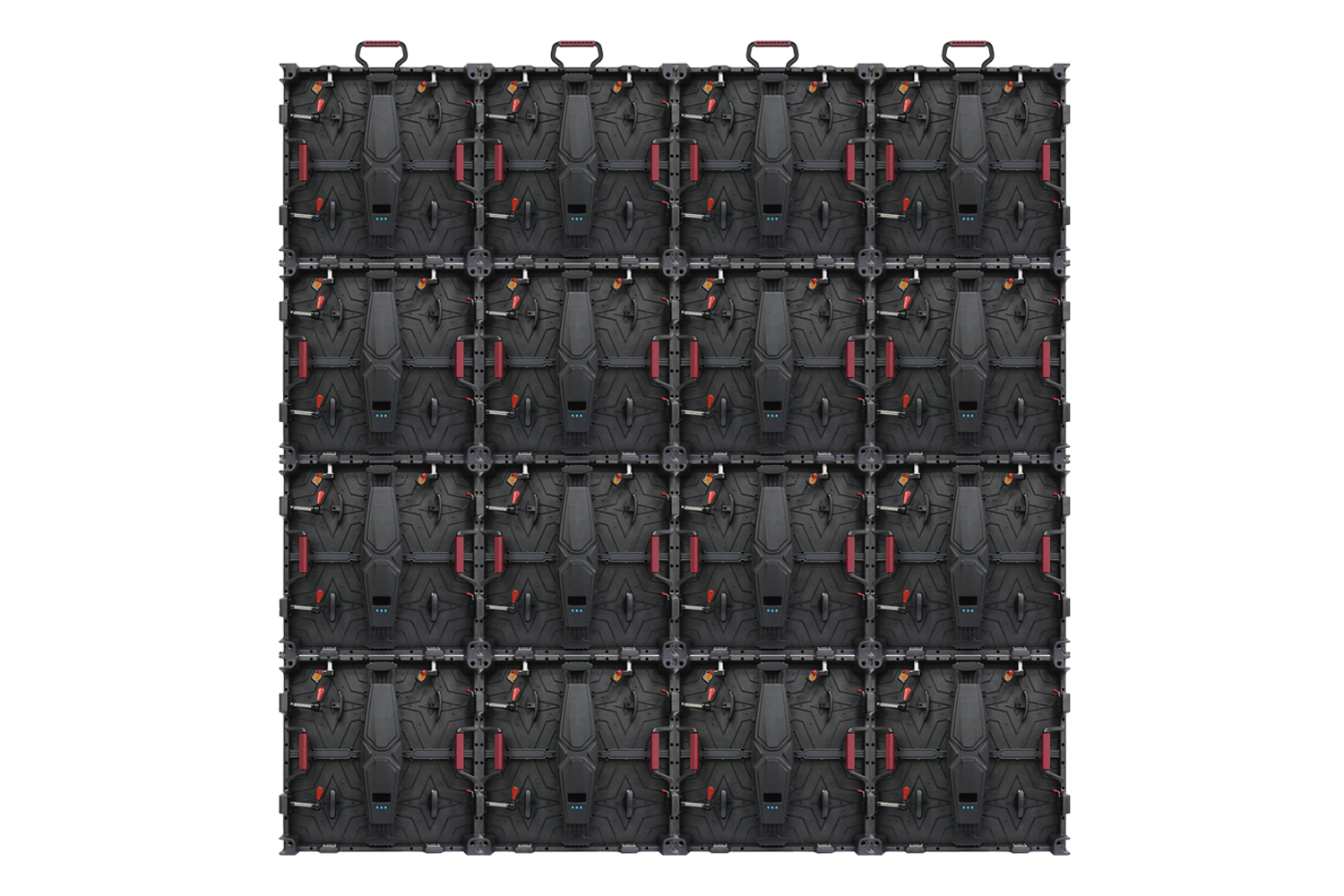

Seamless splicing

CNC high-precision die-casting aluminum box (cabinet flatness ≤ 0.1mm) Module, power supply, system hard connection Plug and play, support hot plugging and unplugging Bi-directional cabinet maintenance Adopt rotary locking design, both front and rear can realize post maintenance

including module, power supply, control card, cable and so on.

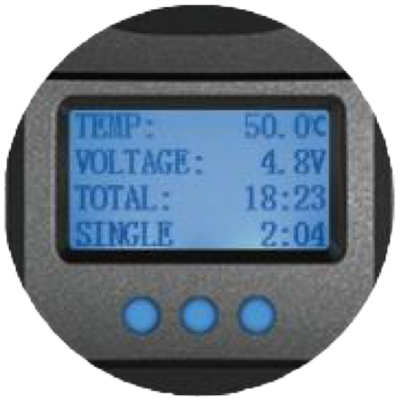

Intelligent Monitoring Display

Real-time display of work status, intelligent information management

Schematic diagram of

the internal parts of the Cabinet

Stainless steel lock

Safety holes

Handle of cabinet

Handle of module

Recess

Quick Alignment Lock

Power Plug

Protruding Table

Quick Lock Rear Cover

liquid crystal display

Alignment Bead

Power & Signal Indicator Test Button

buckle

Signal Plug

Carrying Handle

Parameter-Rental series indoor 500 *500mm LED Display

Pixel Pitch (mm)	P1.56(GOB)	P1.95(GOB)	P2.5(GOB)	P2.6(GOB)	P2.97	P3.91	P4.81
Model	R500-iP1.56	R500-iP1.95	R500-iP2.5	R500-iP2.6	R500-iP2.97	R500-iP3.91	R500-iP4.81
Pixel Configuration	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Density (Pixels/㎡)	409,600	262,144	160,000	147,928	112,896	65,536	43,264
Module Resolution (Pixel)	160x160	128x128	100x100	96x96	84x84	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250	250x250	250x250	250x250
Driving Mode (Duty)	1/40	1/32	1/25	1/32	1/28	1/16	1/13
Cabinet Size (mm)	500x500	500x500	500x500	500x500	500x500	500x500	500x500
Cabinet Weight (KG)	6.5	6.5	6.5	6.5	6.5	6.5	6.5
Brightness (CD/㎡)	750 ~ 1200	800 ~ 1200	800 ~ 1200	750 ~ 1200	800 ~ 1200	800 ~ 1200	700 ~ 1100
Viewing Angle (°)	140	140	140	140	140	140	140
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840	1,920/3,840	1,920/3,840
Protection Grade	IP31	IP31	IP31	IP31	IP31	IP31	IP31
